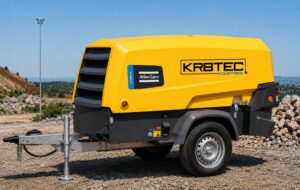

Atlas Copco 8 Series Compressors.
A compact, lightweight compressor range built to deliver reliable air — and optional power — wherever the work happens..
Australia Wide Delivery
Expert Compressor Support
Serviced & Maintained
Built for Tough Sites
One compact range. Air, power and mobility.
Atlas Copco’s 8 Series brings a broad range of portable compressor variants into one compact platform, with air delivery from 2.3 to 5.3 m³/min. Standard and generator-equipped machines support a choice of pressure and airflow requirements while retaining a 60 L fuel tank, Kubota diesel power and a lightweight, towable footprint.
The HardHat® canopy, robust undercarriage and simplified service layout are designed to support productive deployment across construction, maintenance and industrial applications. Generator-equipped variants combine compressed air and electrical supply in one towable unit for jobs that need both.
- 2.3–5.3 m³/min air delivery
- HardHat® protective canopy
- 7, 10.3 or 12 bar configurations
- Generator-equipped variants
- 26.5–33 kW Kubota diesel power
- Under 750 kg standard models
- 60 L fuel tank
- Less than one-hour service
Performance by pressure
Compare the brochure-listed 8 Series variants. Final model selection should be confirmed against application airflow, pressure and electrical requirements.
| Model | Pressure | Air delivery | Generator output |
|---|---|---|---|
| XAHS 38 | 12 bar / 175 psi | 2.3 m³/min / 81 cfm | — |
| XAS 58 | 7 bar / 100 psi | 3.0 m³/min / 106 cfm | — |
| XAS 68 | 7 bar / 100 psi | 3.5 m³/min / 125 cfm | — |
| XATS 68 | 10.3 bar / 150 psi | 3.5 m³/min / 125 cfm | — |
| XAS 78 | 7 bar / 100 psi | 4.5 m³/min / 160 cfm | — |
| XAS 88 | 7 bar / 100 psi | 5.0 m³/min / 175 cfm | — |
| XAS 98 | 7 bar / 100 psi | 5.3 m³/min / 187 cfm | — |
| XAS 48 G | 7 bar / 100 psi | 2.5 m³/min / 90 cfm | 6 kVA (12.5 kVA option) |
| XAS 68 G | 7 bar / 100 psi | 3.5 m³/min / 125 cfm | 6 / 12.5 kVA |
| XAS 88 G | 7 bar / 100 psi | 5.0 m³/min / 175 cfm | 9 kVA |
| XAS 98 G | 7 bar / 100 psi | 5.3 m³/min / 187 cfm | Generator-equipped variant |
Note: Atlas Copco promotes the 8 Series as 12 models/configurations. The brochure technical table names the variants shown above. Generator output is model/option dependent; confirm availability and final configuration with Kirbtech.
Technical Specifications
Key machine data.
- Actual run time will vary based on load and operating conditions.

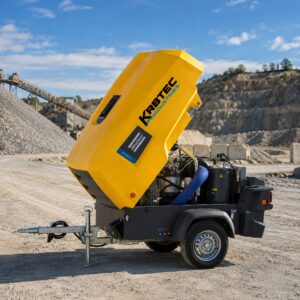

Legendary HardHat® Canopy
A rugged, protective canopy designed for challenging operating environments and a durable portable package.
Compact Towable Design
Up to 5.3 m³/min of air in a compact, lightweight package designed to be transported behind a normal passenger car.
Integrated Power Options
Generator-equipped variants combine compressed air and electrical supply up to 400 V in one canopy.
Efficient Operation
The range is designed for fuel efficiency, reduced service time and strong equipment utilisation.
Fast Routine Service
Spin-on filters and an eight-step service process are designed to complete routine maintenance in minutes, not hours.
Full Fuel Shift Autonomy
A 60 L fuel tank supports productive jobsite operation between refuelling stops.
Robust Undercarriage
A strong single-sheet undercarriage and 110% spillage-free frame support confident site transport.
Generator Safety & Control
Generator-equipped variants include an IT relay as standard and do not require extra earthing, subject to final configuration.
